LOGISTAR 260

LOGISTAR 260

The new dimension of the van class - the LS 260 van was created to meet the different challenges in urban and rural environments.

LOGISTAR 260

A NEW DIMENSION

The LS260 defines a new dimension in the van segment (vehicle class N1).

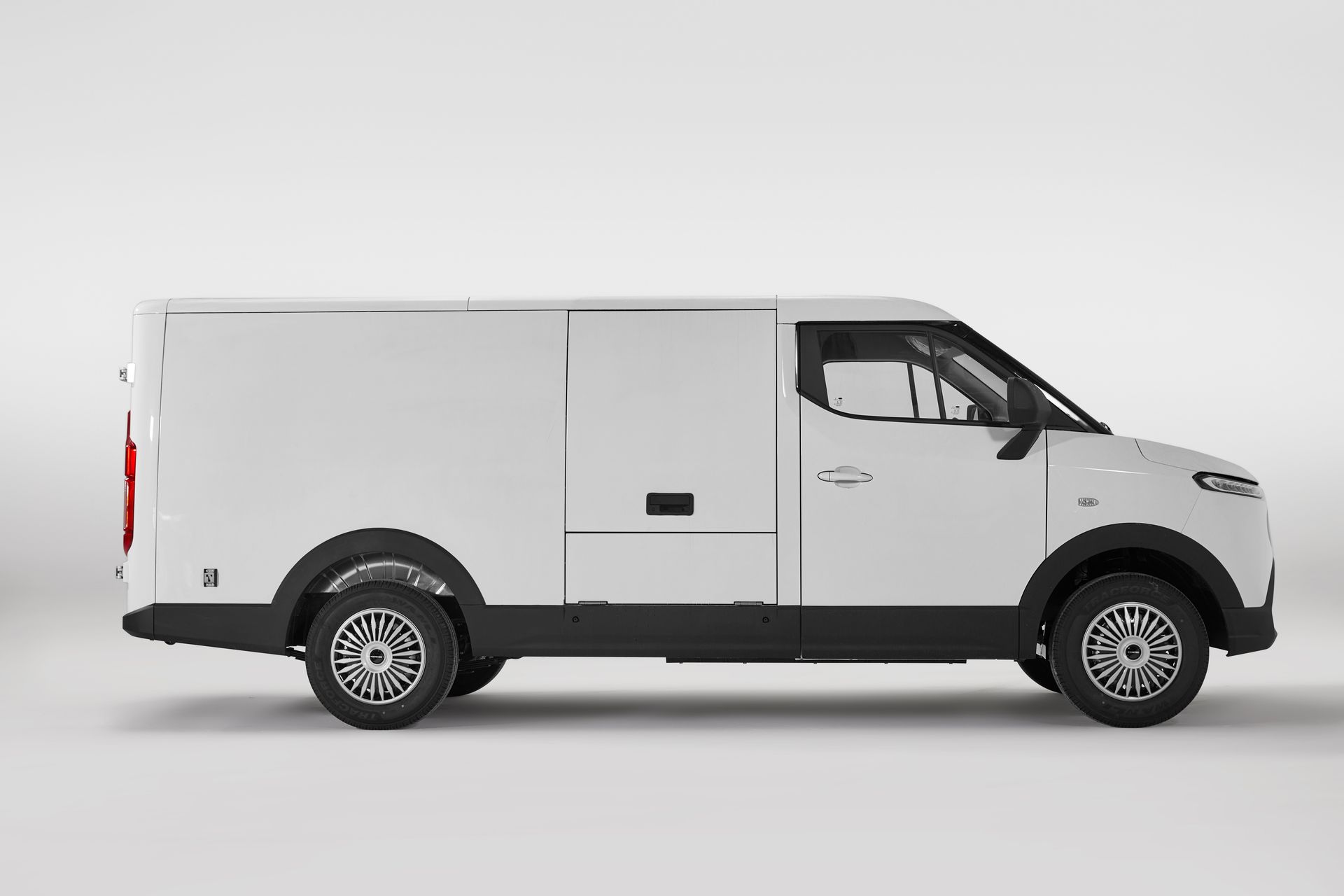

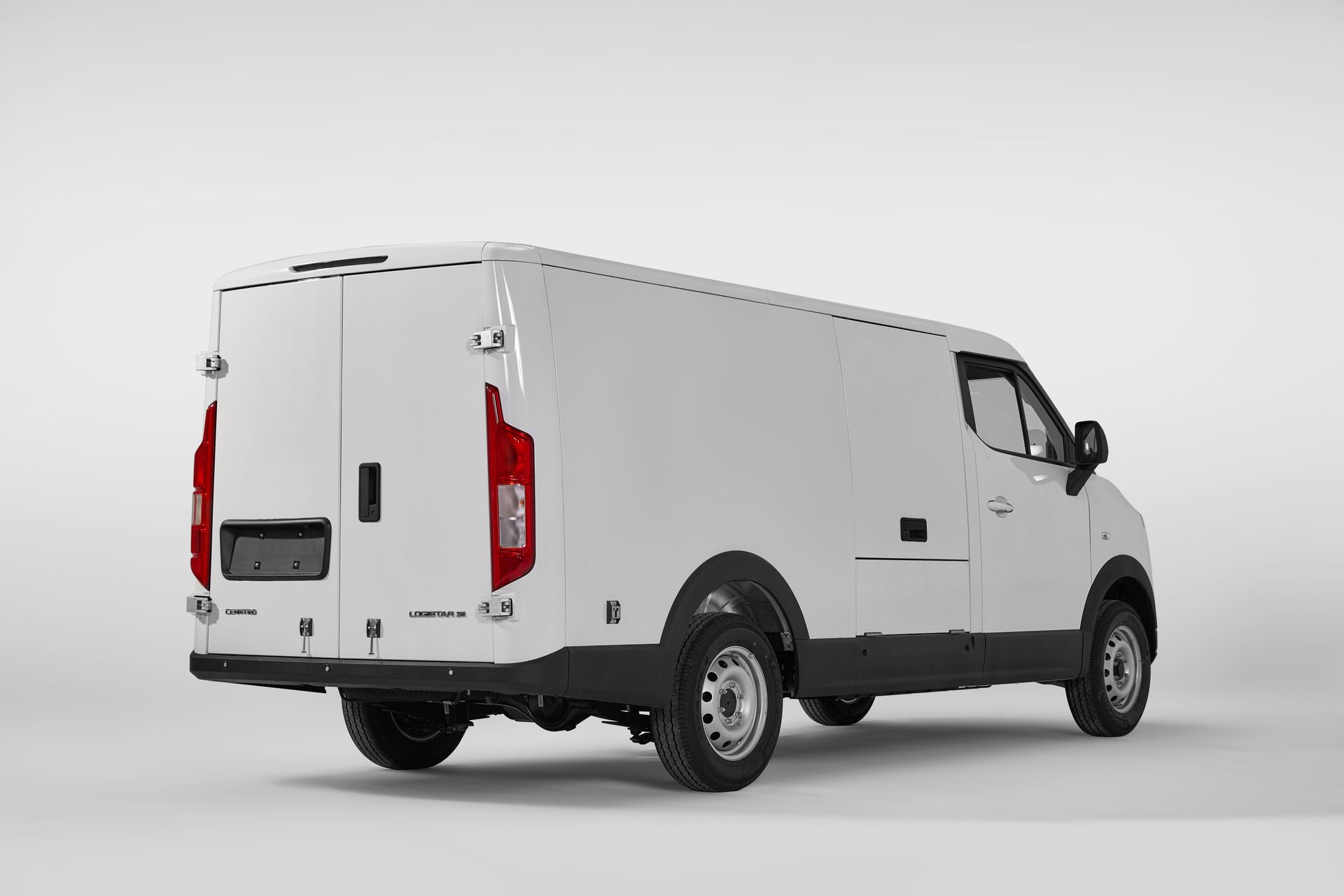

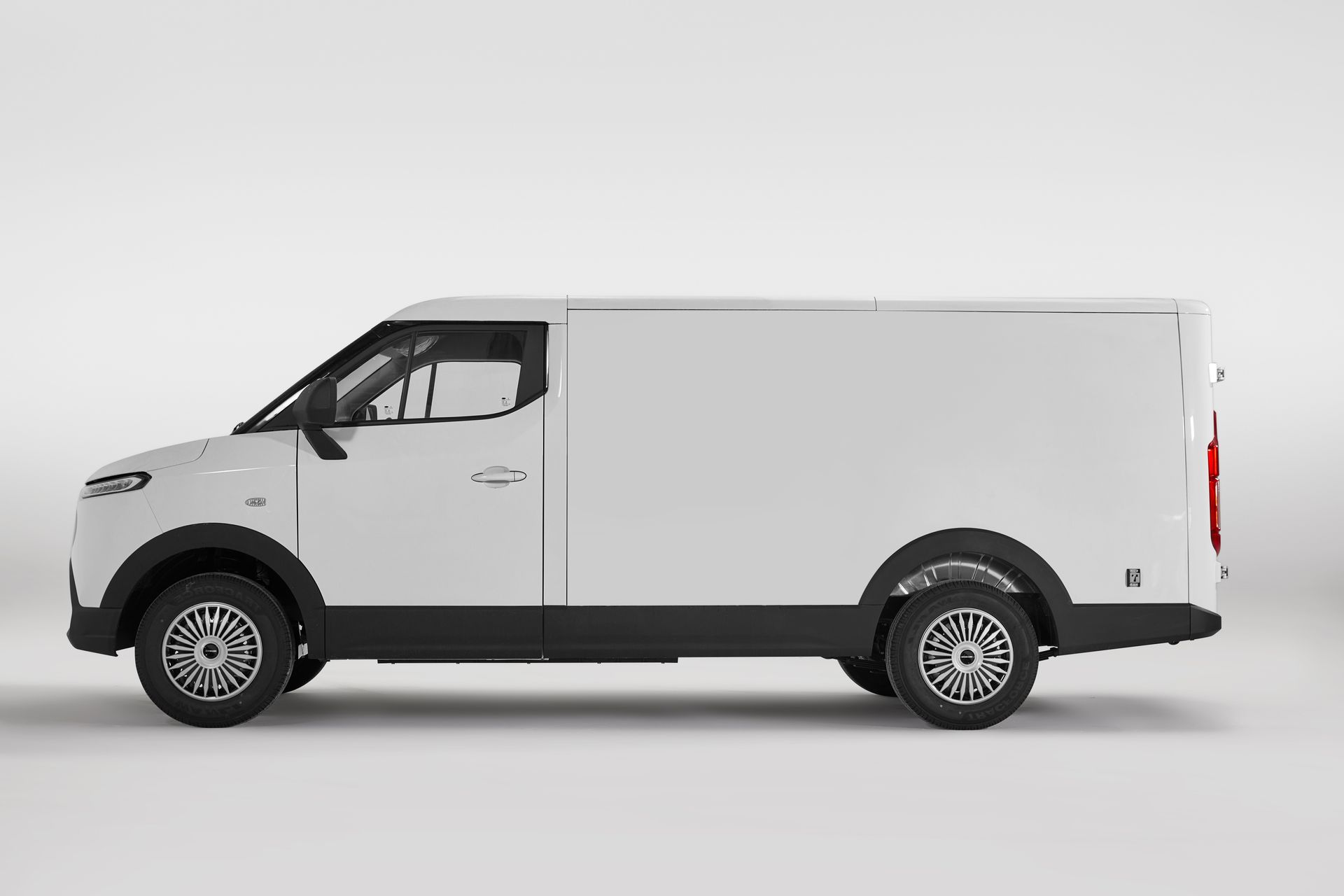

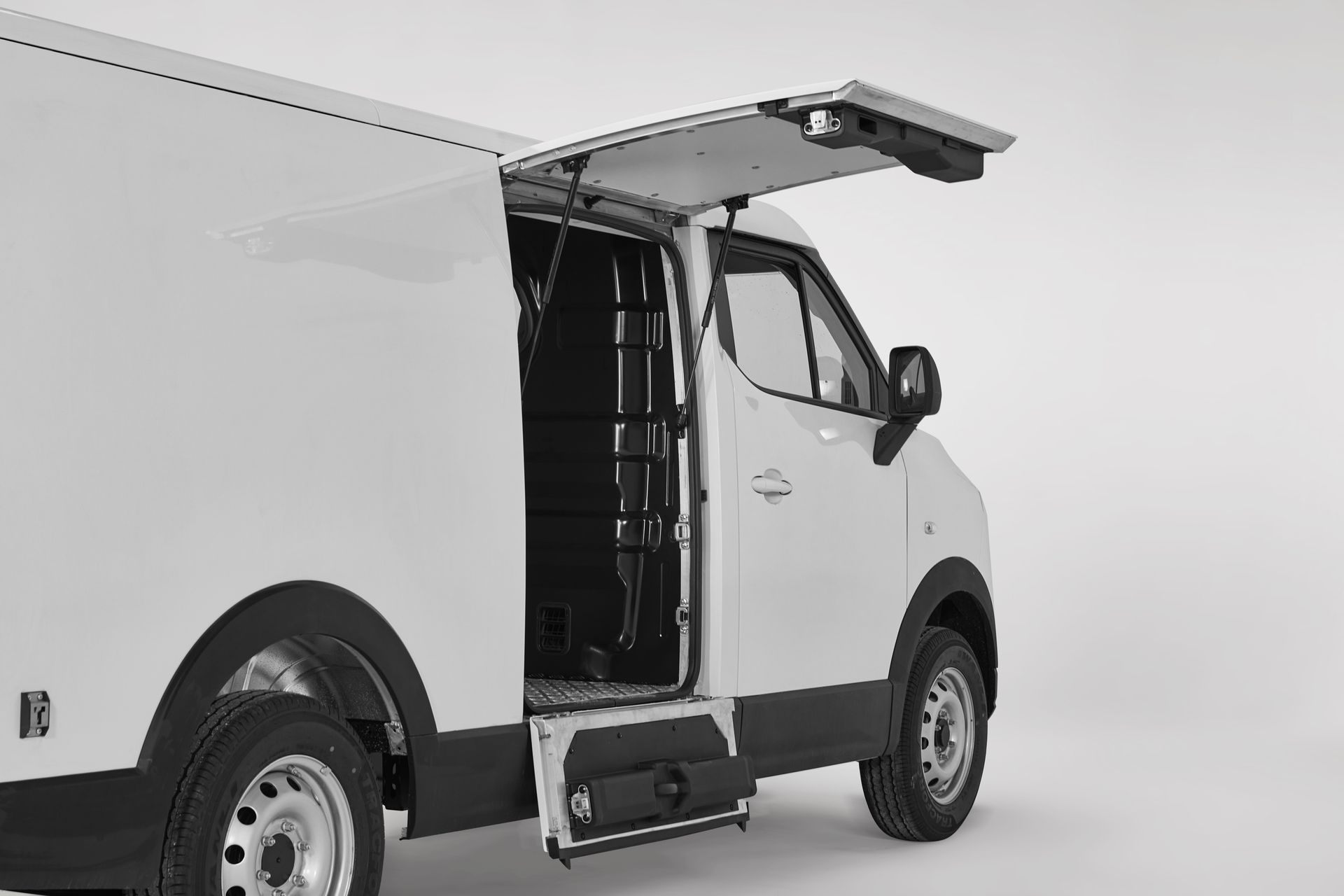

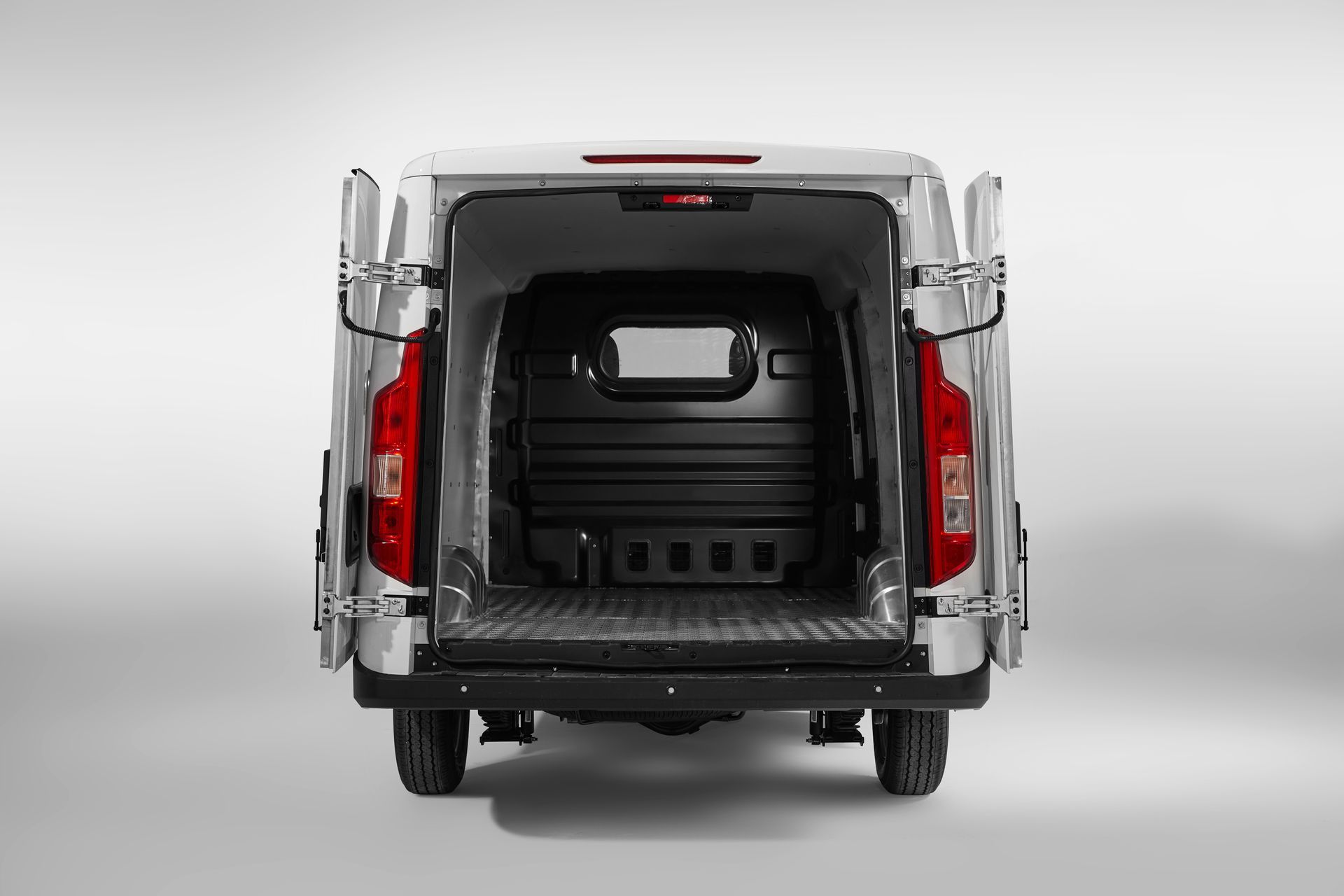

With a length of 5.5 meters, a width of 1.85 meters and a height of 2 meters, it offers a load capacity of 7.5 cubic meters, two side loading doors and comfortable rear doors with an opening of load up to 270°.

Request Informations

READY FOR EVERY CHALLENGE


With a payload of approximately 1,280 kilograms and a range of up to 270 kilometers, the LS260 offers ample cargo space and can support the installation of racks and bins for the safe and convenient storage of tools, supplies, equipment and more Still.

Request Informations

LOGISTAR 260

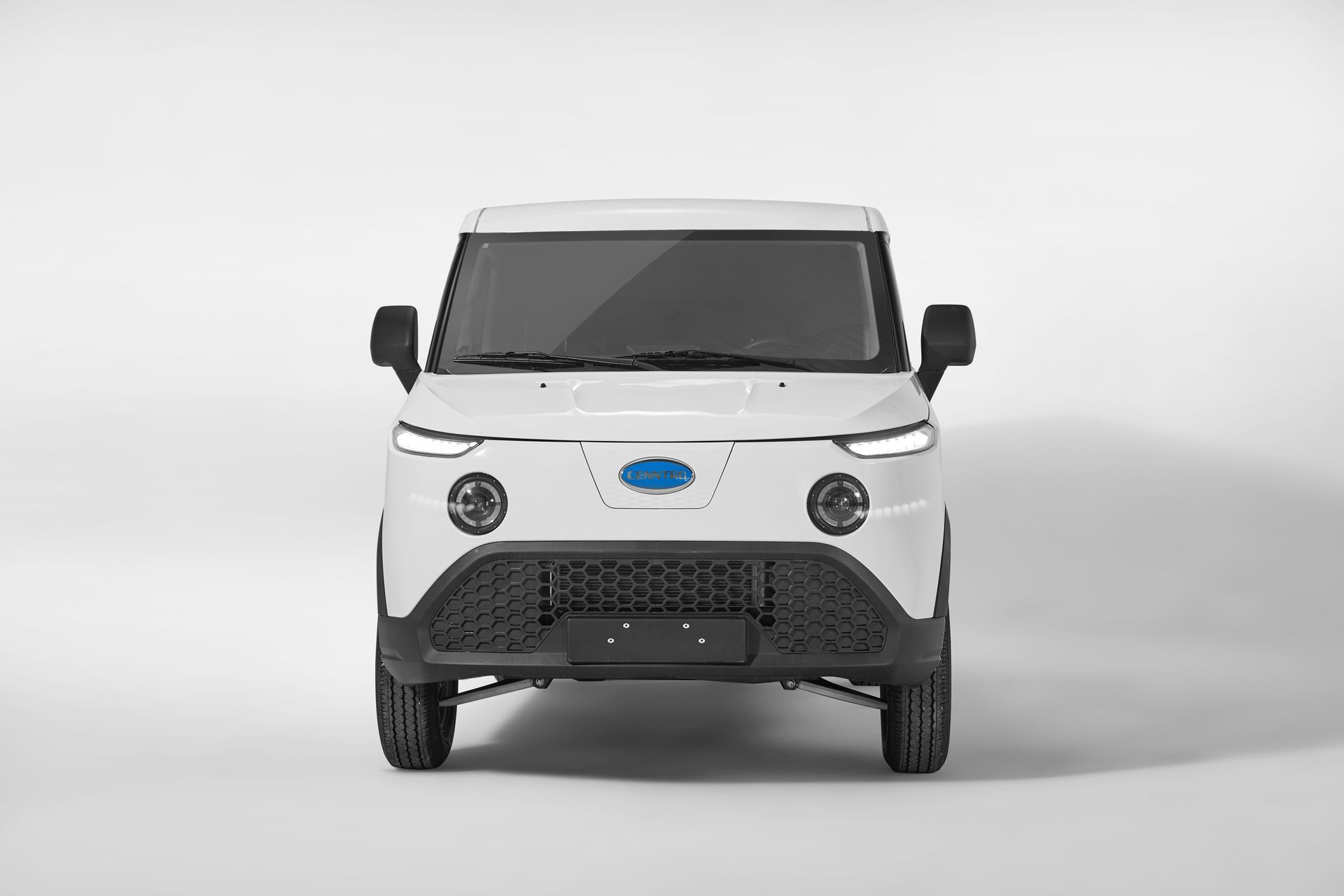

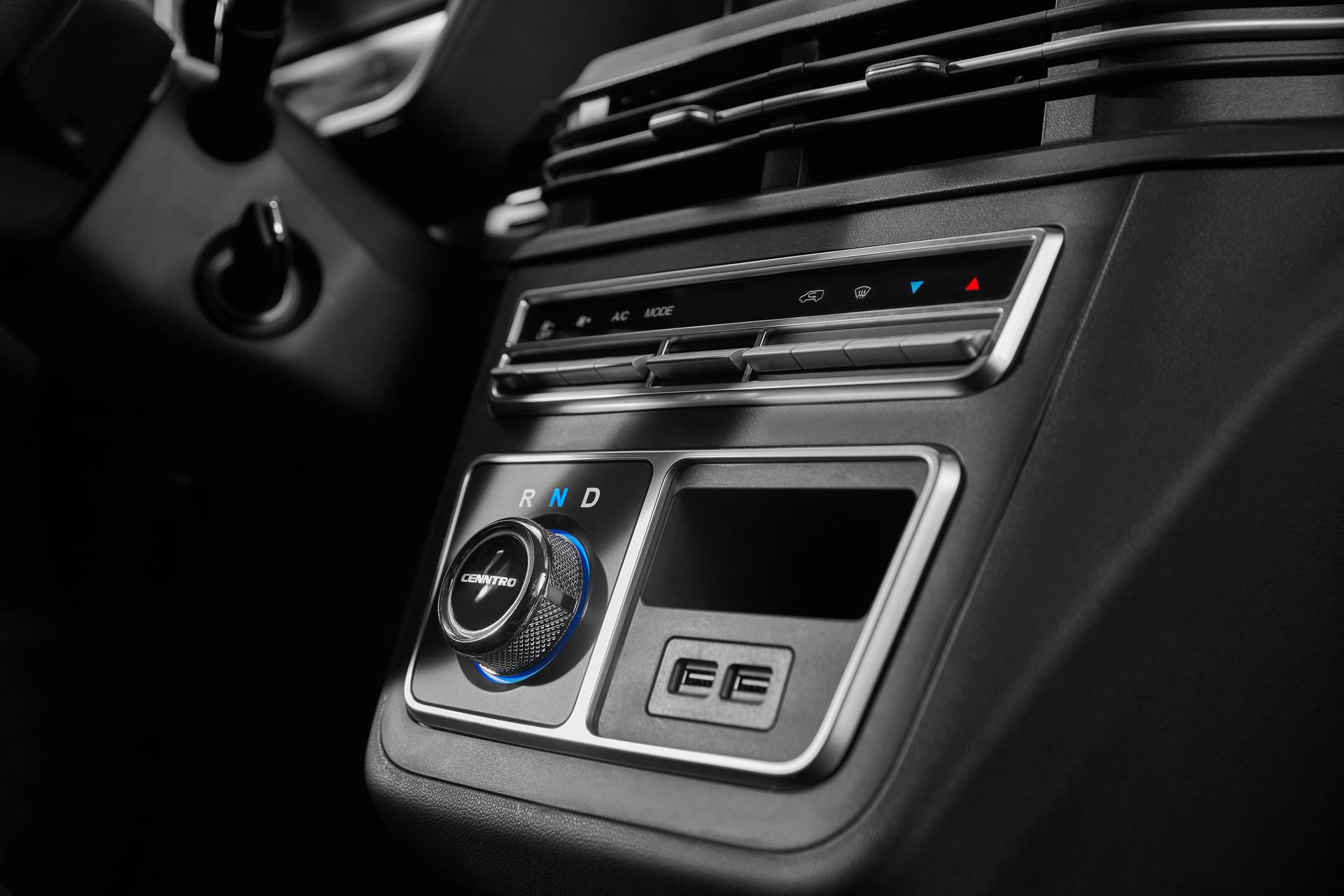

From the outside to the inside, the LS260 was designed to sustain productivity. With an aluminum alloy frame and plastic composite front panels, the exterior design maximizes cabin comfort and driving performance that envelops you with confidence day after day.

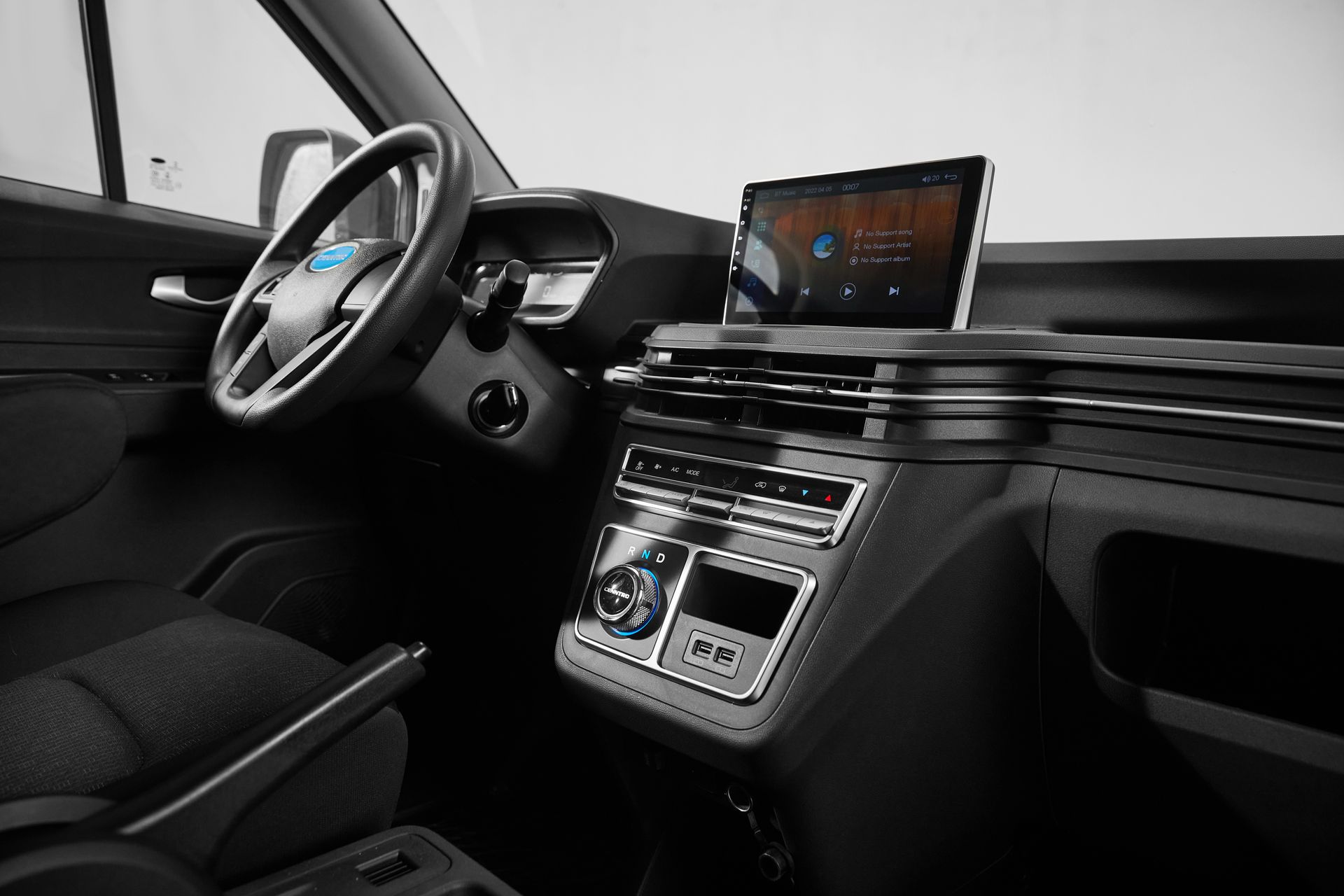

The spacious cabin can even accommodate a mobile office to support business needs.

Request Informations

LOGISTAR 260 - Specifiche Tecniche

  • Dimension (LxPxH) - 5457×1850×2046 mm
  • Front/Read Tread -  1624/1624 mm
  • Wheelbase -  3380 mm
  • Curb Weight - 1650 kg
  • Gross Weight - 3060 kg
  • Payload - 1280 kg
  • Cargo Volume - 7,5 m³
  • Minimum Ground Clearance - 190 mm
  • Minimum turning Radius - 13,9 m
  • Seats -  2

  • Motor Type - Permanent Magnet Synchronous
  • Max Speed - 80 km/h
  • Gradability - 25%
  • Range - 270 km
  • Peak Power - 75 kW
  • Peak Torque - 265 N-m

  • Battery Type -  LFP
  • Battery Capacity - 43,5 kWh
  • System Voltage - DC 345,6 V
  • Charging Power - 6,6 kW
  • Charging Voltage - AC 90-264 V
  • Fast Charge - 30% - 80% SOC: 30 minuti
  • Slow Charge -  0% - 100% SOC: 8 ore (AC 220V)

Maggiori informazioni

  • Motor Drive Mode -  Rear engine Rear Drive
  • Front Sospension -  Machpherson Independent Suspension
  • Rear Sospension -  Leaf Spring Dependent Suspension
  • Front/Rear Brake- Disc/Drum
  • Transmission Type - Fixed Gear Ratio Reduction Axle

  • Vehicle Color - White
  • Tyre - 195/75R16LT
  • ECO Driving Mode(for energy saving)
  • Remote Control Key
  • Central Locking
  • Bluetooth Audio
  • Loudspeaker
  • USB Interface
  • Rear View Mirror - Manual Control
  • Reversing Radar
  • EPS
  • Sun Shield
  • Car Window Regulator - Eletrical
  • Air-conditioner
  • PTC Heating System
  • Lighting Lane Change AIDS
  • Hand Tool for Vehicle
  • Spare Tyre

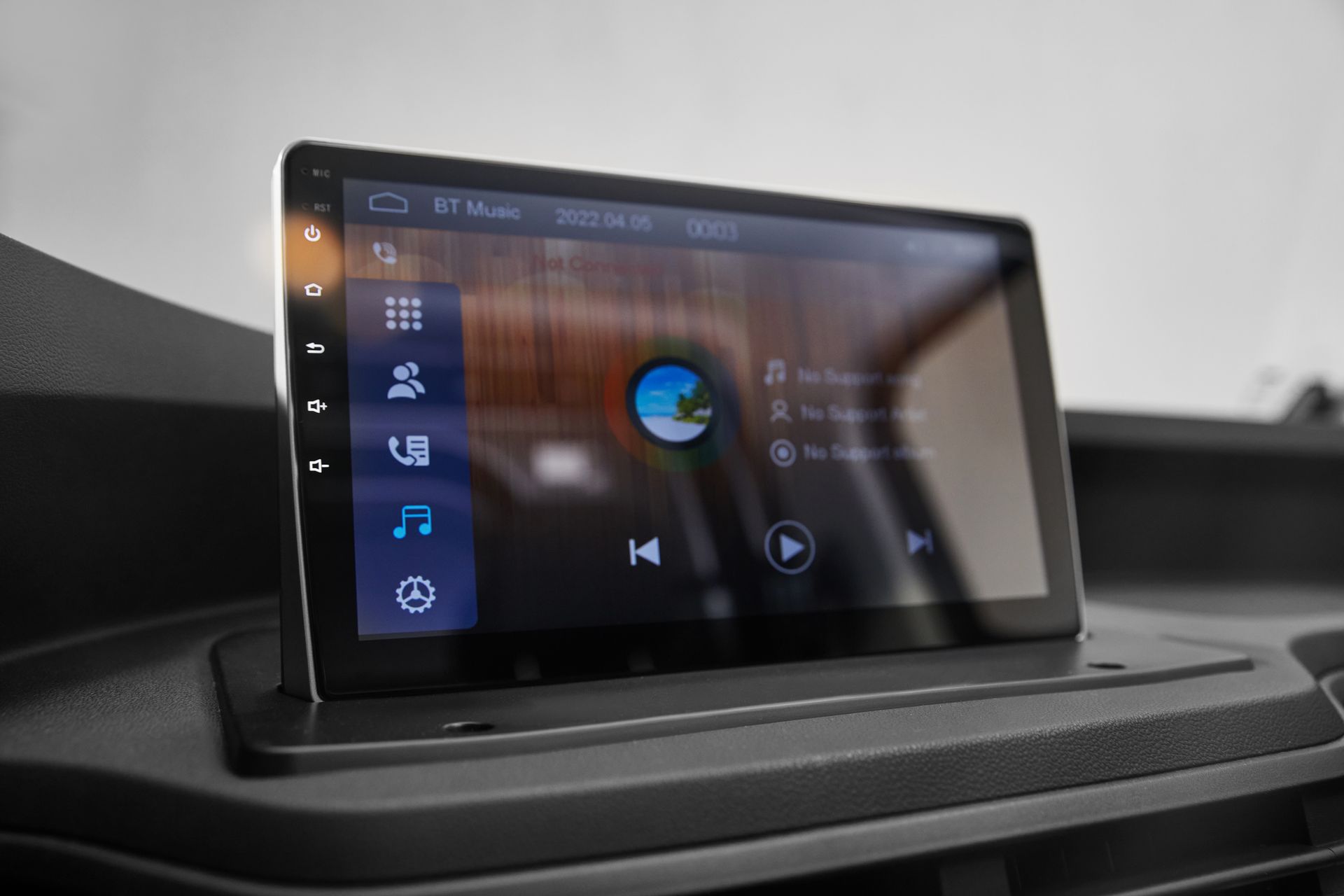

  • Multi-Function Digital Screen - Optional
  • Reversing Camera - Optional
  • Hub Adornment Cover - Optional
  • Armrest of Passenger Seat - Optional
  • Slow Charging Gun - Optional
